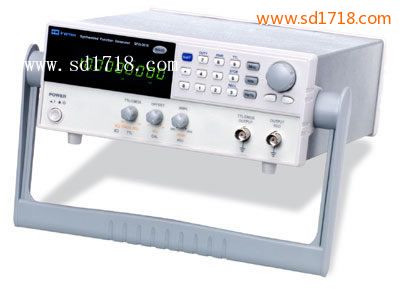

數位合成函數信號發生器
【型 號】SFG-2104
【品 牌】臺灣固緯GWINSTEK
【價 格】洽詢
【主要技術指標】頻率范圍:0.1Hz~4MHz
【詳細技術指標】
，，
MAIN |
|
| Frequency Range (For Sine, Square) |
0.1Hz~4MHz |
| Frequency Range (For Triangle) |
0.1Hz~1MHz |
| Frequency Resolution | 0.1Hz |
| Frequency Stability | ∮ 20 ppm |
| Frequency Accuracy | ∮ 20 ppm |
| Frequency Aging | ∮ 5 ppm / year |
| Output Function | Sine, Square, Triangle |
| Amplitude Range | 10Vpp(into 50?load) |
| Flatness(Sinewave relative to 1kHz) | ≌∮ 0.3dB,0.1Hz°1MHz; ≌∮ 0.5dB,1MHz°4MHz; ≌∮ 2dB, 4MHz°10MHz |
| Impedance | 50?∮10? |
| Attenuator | -20dB∮1dB⊙2 |
| DC Offset | ≌-5V°≈+5V(into 50?load) |
| Duty Control Range | 20% to 80% below 1MHz (Square wave only) |
| Duty Control Resolution | 1% |
| Display | 9 digits LED display |
SINE WAVE |
|
| Harmonics Distortion | -55dBc,0.1Hz°200kHz; -40dBc,0.2MHz°4MHz; -30dBc,4MHz°10MHz (Specification applied from MAX. to 1/10 level) |
TRIANGLE WAVE |
|
| Linear | ≠98?,0.1Hz°100kHz;≠95?,100kHz°1MHz |
SQUARE WAVE |
|
| Symmetry | ∮ 1% of period +4ns to 0.1Hz°100kHz ;Rise or Fall Time; ∝25ns at maximum output.(into 50?load) |
CMOS OUTPUT |
|
| Level | 4Vpp∮1Vpp°14.5Vpp∮0.5Vpp adjustable; Rise or Fall Time; ∝120ns |
TTL OUTPUT |
|
| Level | ≠3Vpp ; Fan Out; 20 TTL load ; Rise or Fall Time ; ∝25ns |
SWEEP OPERATION |
|
| Sweep/Rate | 100:1 ratio max. and adjustable |
| Sweep/Time | 0.5Sec°30Sec adjustable |
| Sweep/Mode | Lin. / Log. switch selector |
AMPLITUDE MODULATION |
|
| Depth & MOD. Frequency | 0°100? ; 400Hz(INT),DC°1MHz(EXT) |
| Carrier BW | 100Hz°5MHz(-3dB) |
| EXT Sensitivity | ∝10Vpp for 100?modulation |
FREQUENCY MODULATION |
|
| Deviation & MOD. Frequency | 0°∮5? ; 400Hz(INT),1kHz(EXT) |
| EXT Sensitivity |
∝10Vpp for 10? modulation |
FREQUENCY COUNTER |
|
| Range | 5Hz°150MHz |
| Accuracy | Time base accuracy∮1count |
| Time base | ∮20ppm(23?∮5?) after; 30 minutes warm up |
| Resolution | The maximum resolution is 100nHz for 1Hz and 0.1Hz for 100MHz |
| Input Impedance | 1M?/150pf |
| Sensitivity | ∝35mVrms(5Hz~100MHz) ∝45mVrms(100MHz~150MHz) |
| STORE/RECALL FUNCTION | |
| 10 groups of Setting memories | |
| POWER SOURCE | AC115V, 230V∮15%, 50/60Hz |
ACCESSORIES |
|
| Instruction manual x 1 Power Cord x 1 GTL-101 x 2 |
|
| DIMENSION & WEIGHT | 107(W)⊙266(H)⊙293(D) m/m Approx. 3.2kg |
